Descrizione

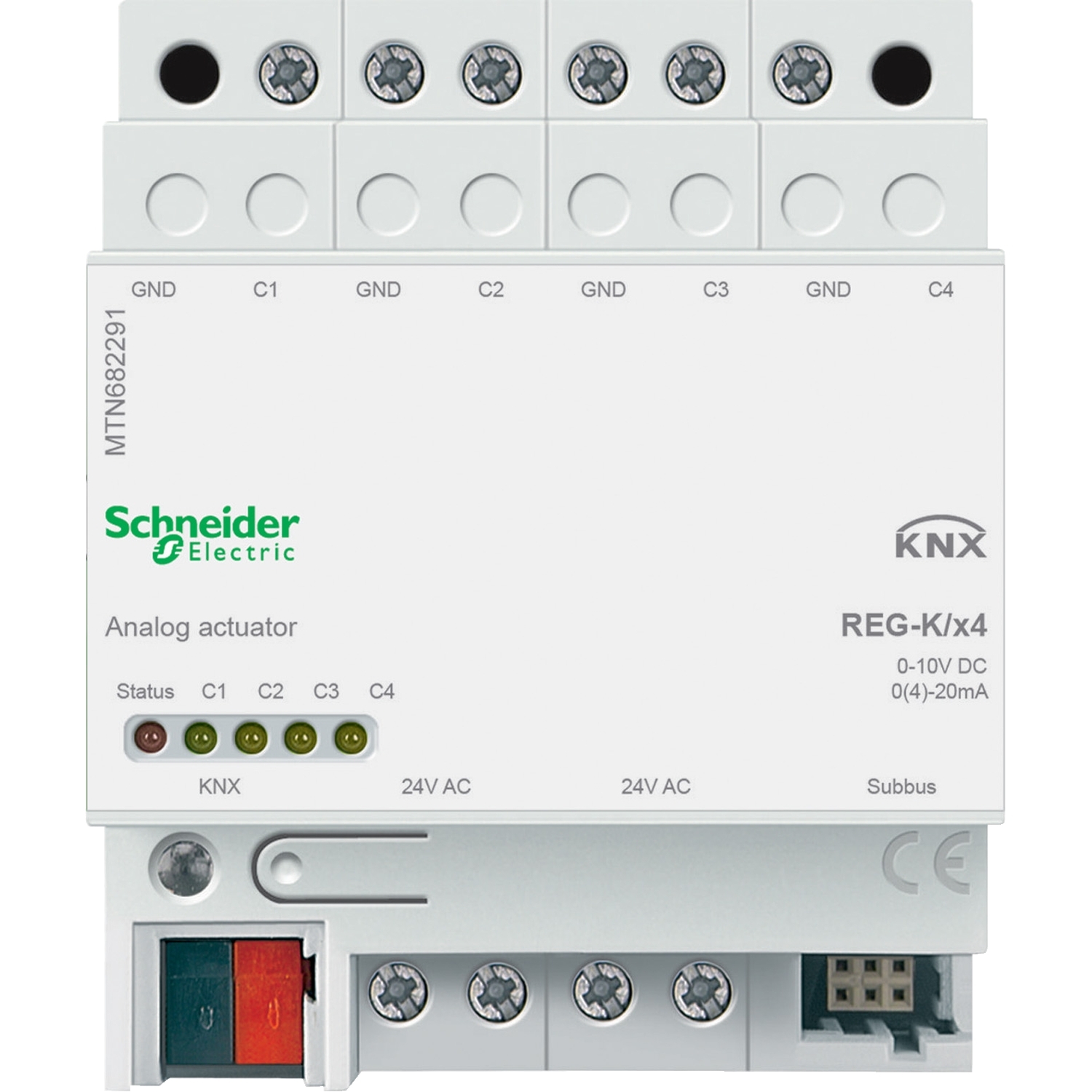

The output channels can be parameterised for different current and voltage signals to control different analogue variables (e.g. servomotors). The actuator has four analogue outputs. With continuity checking of the current outputs. For installation on DIN rails TH35 according to EN 60715. Auxiliary voltage: AC 24 V (+/-10 %). Analogue outputs: 4. Current signals: 0-20 mA, 4-20 mA. Voltage signals: 0-1 V, 0-10 V. Continuity checking: 4-20 mA. Outputs: DC 24 V, 100 mA (total). Device width: 4 modules, approx. 72 mm. Contents: With bus connecting terminal and cable cover. Colour: light grey.
