Descrizione

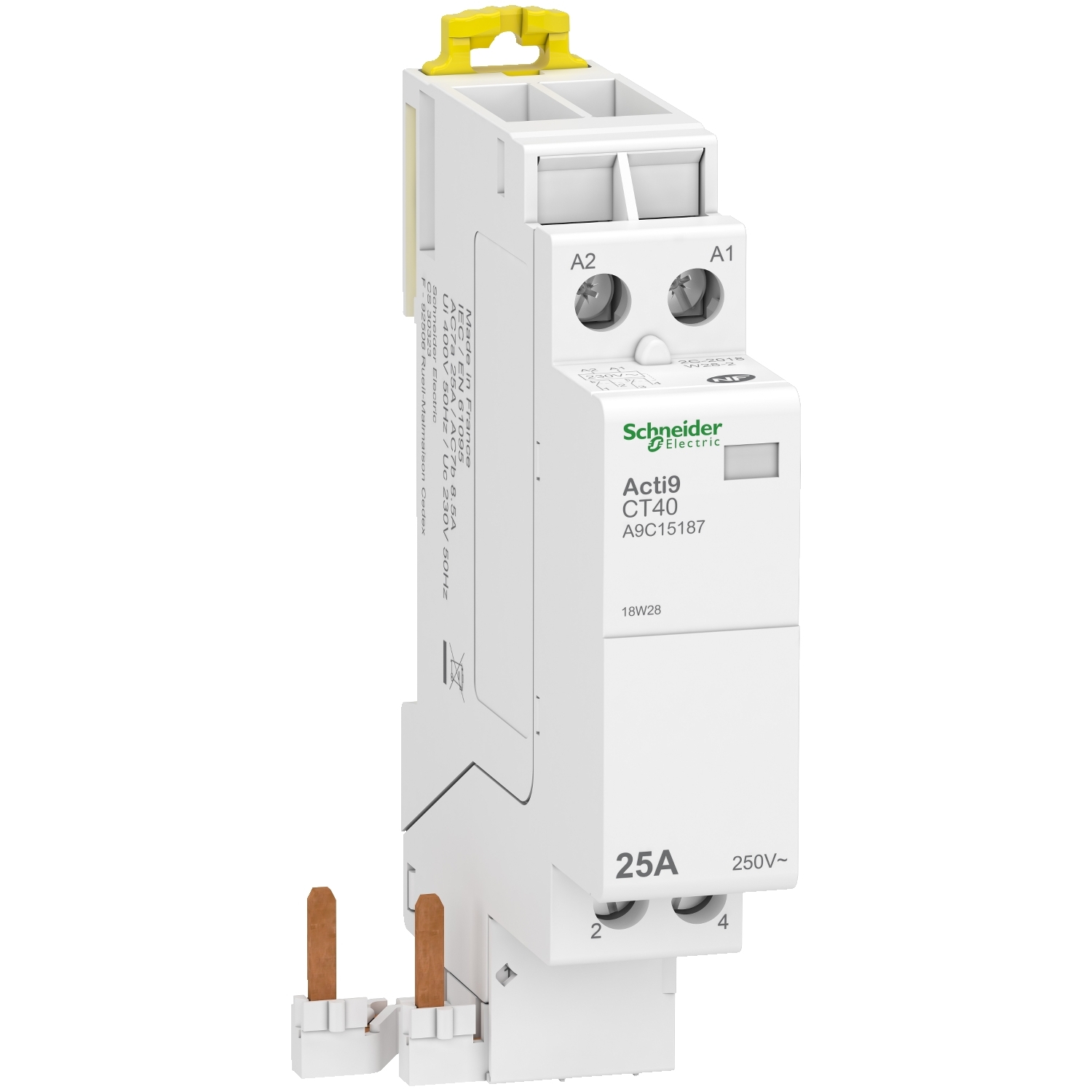

This Acti9 CT40 is a modular contactor. It is a 2P remote control device with 2 normally open contact. The rated current is 25A for AC-7a and 8.5A for AC-7b. The Ue rated operational voltage is 250VAC. The Uc control voltage is 230VAC. This device could be used for control circuits. This product is compliant with EN/IEC 61095 standard. The maximum switching operations is 100 per day and 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 2.5kV. Pollution degree is 2. It is DIN rail mountable. Its width is 2 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 87mm x (H) 18mm x (D) 66mm. The weight is 110g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 60°C.
