Descrizione

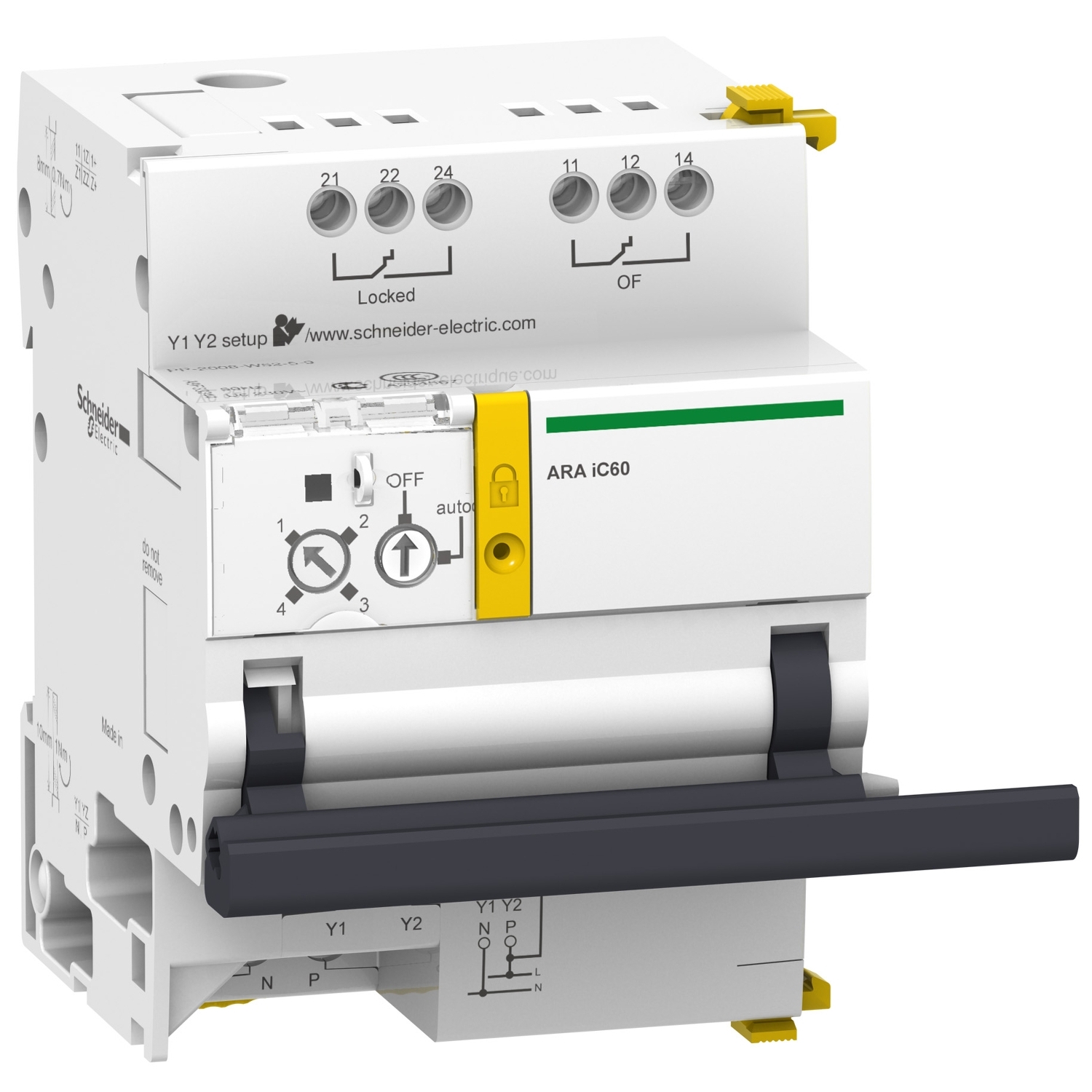

This Acti 9 ARA iC60 is an automatic recloser auxiliary is dedicated to iC60 circuit breakers. It performs 4 programs of automatic reclosing of the associated protection device after tripping. It increase the availability of installations without supervision, isolated, hard of access and demanding very great availability by restoring them to operation without intervention by personnel in the event of a transient fault. This device controls 1P, 1P+N, 2P installations. The width in 9mm pitches is 7. The Ue rated operational voltage is 230VAC. The operating frequency is 50Hz or 60Hz. The circuit is placed in safety configuration by the padlocking device. The operating temperature is -25°C to + 60°C. The storage temperature is -40°C to + 85°C.
